Offset mesh in APDL

Status
Not open for further replies.
cocodrillo1

cocodrillo1

Mechanical
Jun 13, 2009
6
Dear Users

I have surfaces with a mesh. I would like to get mesh on the offset surfaces (similar as on the example from with the same number of nodes.


How to do it in APDL?

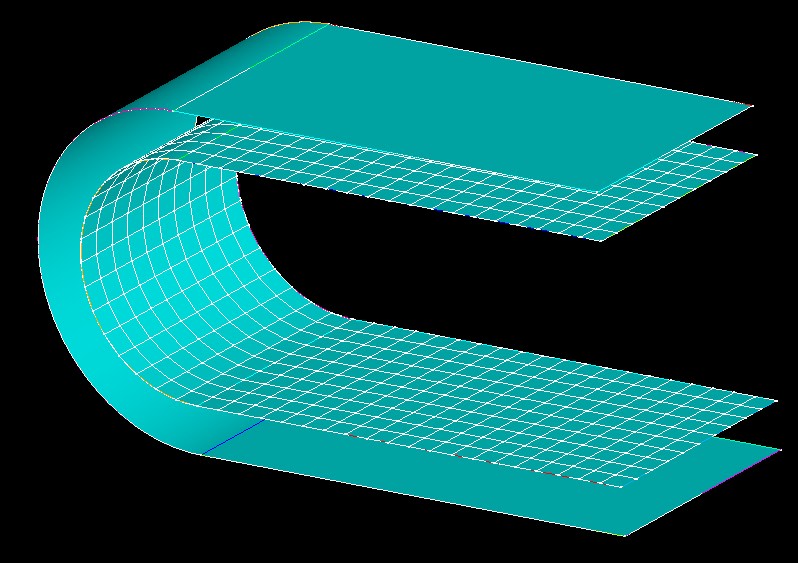

My surfaces:




Thank you, best regards.
