Y-manifold

[kellnerp]

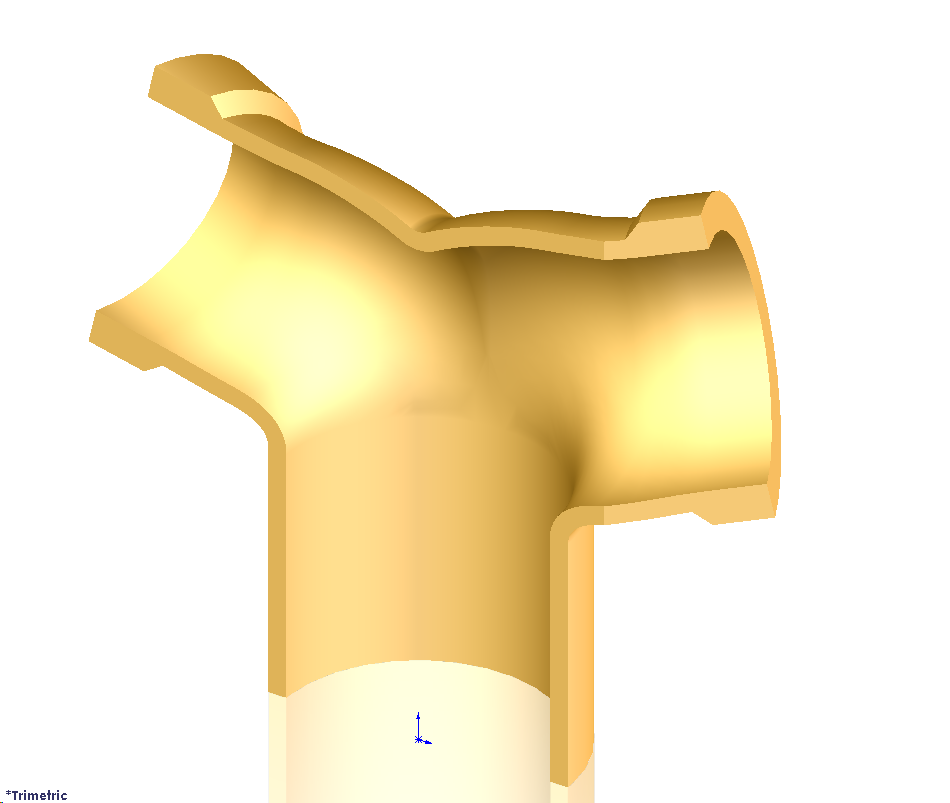

Basic geometry from ArtL's Y-Manifold
32 features

TOP
CSWP, BSSE

http://www.engtran.com

http://www.niswug.org

http://www.linkedin.com/in/engineeringtransport

Phenom IIx6 1100T = 8GB = FX1400 = XP64SP2 = SW2009SP3
"Node news is good news."



[ArtL]

Kellnerp I have revised "Y" manifold, making "Y's" flow into a oval, instead a round. Can get the transion not as abrupt and not making the radiuses a critical.I still have problems figureing out how the ATOMIC radii work. what area am I supposed to be looking at to do the radii? The part where he adds a "patch" and radiuses? Any ways happy new year, Here is the latest and greatest manifold.as you can see the sharp divider separating the "Y" I want to keep. Someone sezs helps divide air flow to exit ports.Air flows from larger port to 2 smaller "y" ports.



[ArtL]

Kellnerp Here is solidworks Ver2011 Model



[kellnerp]

I've got step by step screen shots that I'll be putting up here. Will have to make some mods to show your new constraints.
