Side View Dimensioning of Interupted Feature of Size/Chamfers/etc

[njm789]

Hi all,

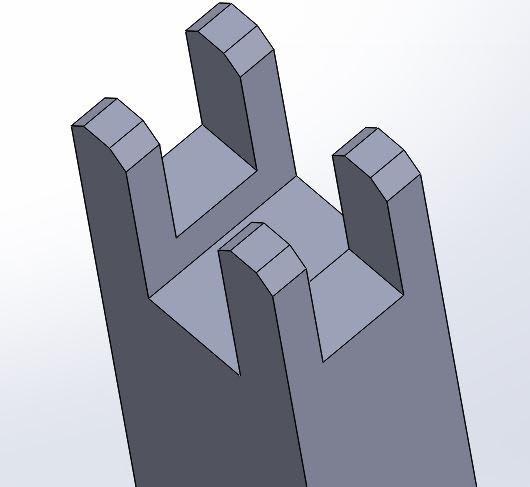

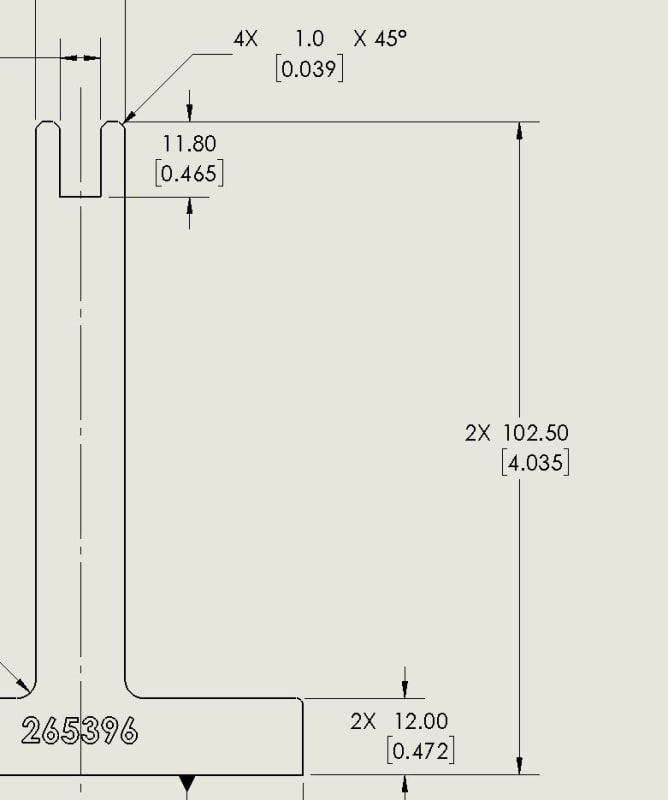

What is the correct way of dimensioning a feature of size that is interrupted such as the height of the part below or chamfers/radii from a side view that are continuous. Eg. Would it be 4X CHAMFER or 8X CHAMFER (is it confusing/wrong to put 8X if only 4X are visible in view)/similarly would the height be DIM, 2X DIM, or 4X DIM?



[ctopher]

There are 8 chamfers, call out 8X.

ctopher, CSWP
SolidWorks '17
ctophers home
SolidWorks Legion



[ewh]

They are considered separate features so yes, 8X. Also, the 102.5 dimension should be 4X.

"Know the rules well, so you can break them effectively."
-Dalai Lama XIV
