Restrict bar movement

Status
Not open for further replies.

mekafime

Mechanical
Aug 14, 2015
88
Hi

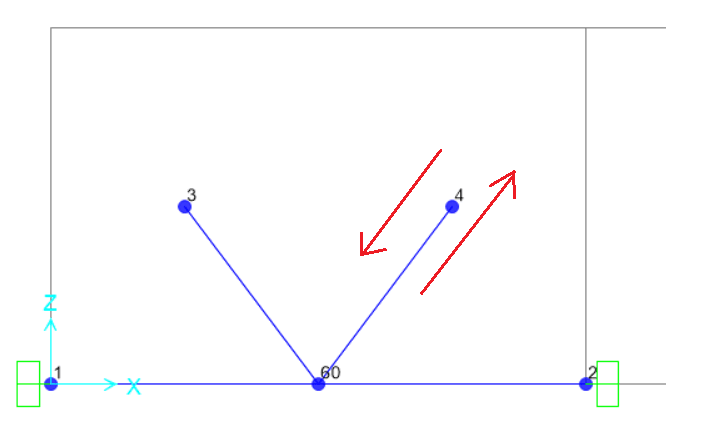

please, I need to restrict the movement in bar ... (I want it to move only in the direction of the red arrows)
The force is applied on the diagonals (bar 3-60 and bar 4-60)
Thanks.


Replies continue below

Recommended for you

Assign local axes for joint 3 and 4 and then allow axial movement only.


I assined local axes and put forces , but I dont know how gives axial movement only
