Partition to reduce heat transfered with natural convection

[Panagiotis Artemiou]

Hi all.

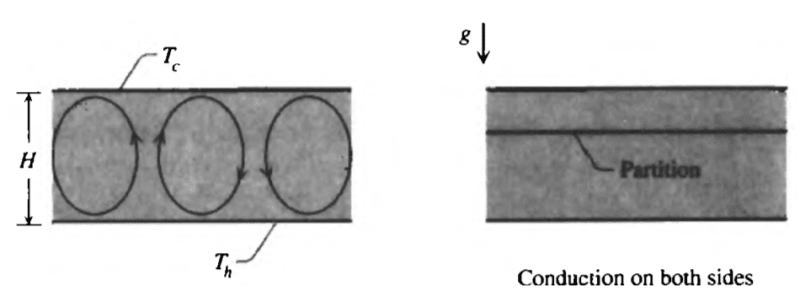

I have a problem where i have to find the best hight to put a partition so that i can reduce the air flow caused by natural convection inbetween two surfaces

It has something to do with the Rayleigh number , like i need to make it as small as possible. Also there is still heat transfered with conduction.
For example when the partition goes up the upper section has a smaller Rayleigh number but heat with conduction is transfered easier whereas the down section haw a higher Rayleigh number but heat with conduction is transfered more difficult because of the longer distance.
Any ideas woyld be really usefull
Thank you!!



[IRstuff]

The objective in prevent convection is to prevent the circulation; that requires vertical walls that are no more than 13 mm in separation, so possibly some sort of honeycomb


Another option, if the top and bottom separation is small is to put layers of bubble wrap in the space.

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert!

https://www.youtube.com/watch?v=BKorP55Aqvg

faq731-376 forum1529 Entire Forum list

http://www.eng-tips.com/forumlist.cfm



[Panagiotis Artemiou]

yeah you are right for an actual application, but hear i have a theoritical problem where i need to find the best hight to put the partition so that the air flow will be minimized. It is more of a mathematics problem but thank you anyways!!!
