MOMENT CONNECTION - SHEAR CONNECTION

[OnePowers]

BEFORE ALL, I THANK TO ALL US FOR YOUR HELP. YOU HAVE BEEN A GREAT HELP TO ME!!

THANKS AGAIN.

IN THIS OCASSION, I HAVE THIS DOUBT...

IS IT POSSIBLE IN A FRAME WHERE I AM USING MOMENT CONNECTION IN A SIDE, PUT IN OTHER SIDE A SHEAR CONNECTION?

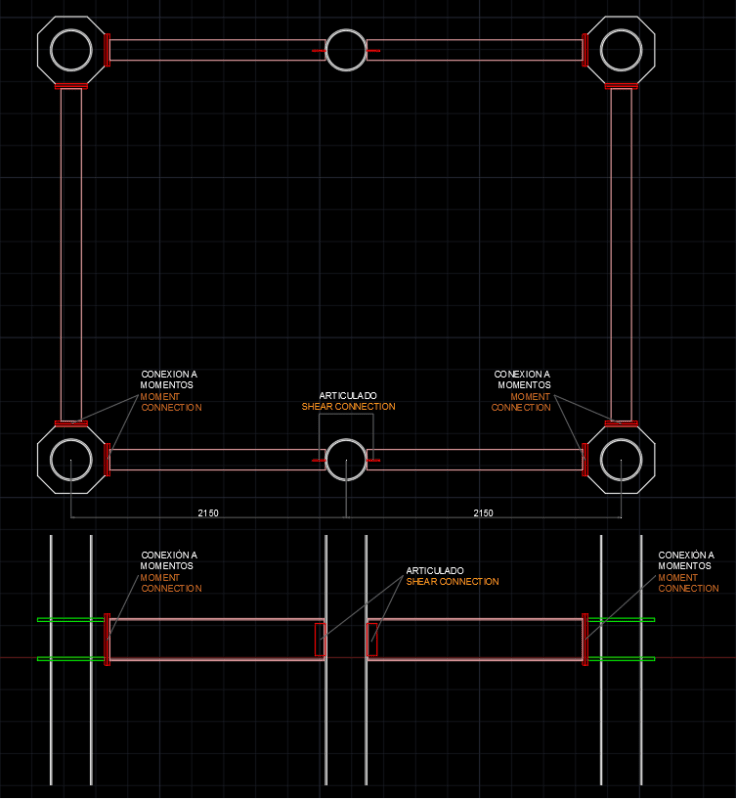

IN ATTACHED IMAGE DISTANCES ARE IN MILIMETERS

ONCE AGAIN, EXCUSES FOR MY ENGLISH.

THANKS!!



[jayrod12]

You can, but your frame would not be as stiff as moment connections at each end of each beam. You are now putting a rotational pin at the centre of your frame.
