MMB size gage pin

[SeasonLee]

Hello All

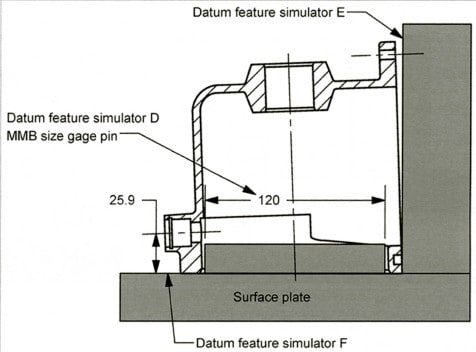

This figure is dealing with the implied datum sequence instead of the gage size, but I can't figure out how to get this MMB gage pin size 120 on the figure posted, I will say it would be 120.10 from the existing data, Please let me know if I am wrong. Thank you.

Season



[Burunduk]

I would also say it should be 120.1



[SeasonLee]

Thanks for the verification. Burunduk.

Season



[Burunduk]

I am also not sure what the 25.9 dimension represents.



[SeasonLee]

It should be the one before revising from 25.9~26.1 to basic dimension 26.

Season



[aniiben]

May I ask what means implied datum sequence? I never heard this term within Y14.5.

Where is this picture from? Some training material?



[SeasonLee]

aniiben

Please read the snapshot for details.

Fig. 3-8 is the one posted at 18:35

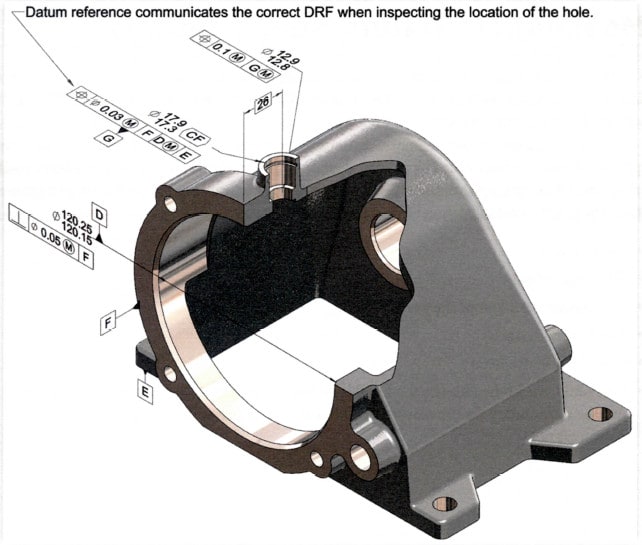

Fig. 3-10 is the 1st picture posted at 17:06
Fig. 3-11 is the 2nd picture posted at 17:06

All these pictures are from Advanced Concepts of GD&T 2009 by SAE, please advise if the posts is against the copyright and I will remove them right away.

Season



[greenimi]

SeasonLee,

I think I've seen Implied Datum Sequence term used in one of the Alex Krulikowsi's books (Fundamentals or Advanced),not positive thus, but the common denominator was the same: ambiguous setup if ± is used to locate features.
I don't think it's a standardized term, but good to know.
