How to represent Datum A is restricting only 2 degree of freedom, etc. Datum B, C in ISO GPS system

Thread starter 2020Learner
Start date May 10, 2022

Status: Not open for further replies.

May 10, 2022

2020Learner

Automotive

Hello Team,

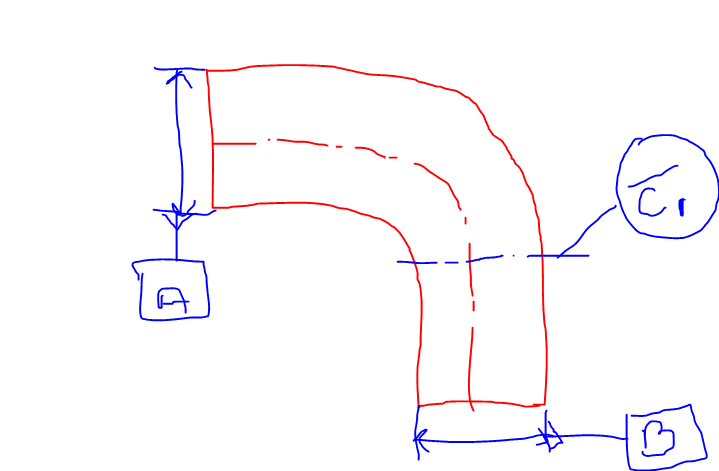

From the picture inserted, I have a situation that i want to show next to datum A , or Datum B callout that Datum A or B is restricting only 2 or 3 or etc. Degrees of freedom in ISO GPS system.
Do we have any method in ISO GPS system to identify like that?
