Face Flat Pattern 1

[LesPaul82]

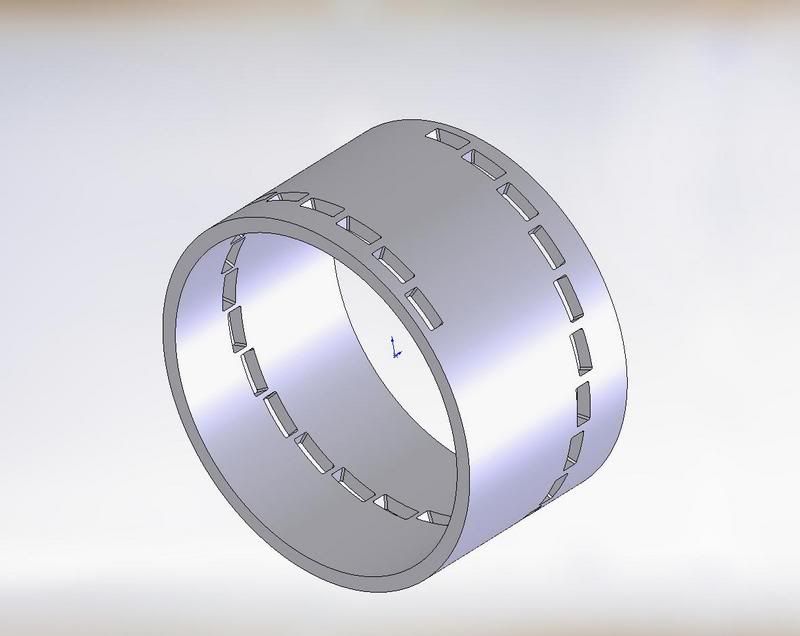

The attached image shows a part that I'm working on. The shop has requested that I print out a flat pattern of the outer face showing the cutouts. Is there any way to select that face and create a flat sketch?

http://i25.photobucket.com/albums/c72/SNutley/rotordrum.jpg

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[CorBlimeyLimey]

To be able to use the Flatten function, the part needs to be a Sheet Metal part.

Is the part being made from tube or solid bar as shown, or from Sheet Metal?



[LesPaul82]

It's being made from a rolled plate.

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[CorBlimeyLimey]

If you add the axial gap and convert the part to SM, you will be able to flatten it.



[LesPaul82]

Axial gap? How would I do that?

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[LesPaul82]

Is that like a split or a seam?

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[CorBlimeyLimey]

Just a regular cut-extrude;

http://www.mooload.com/new/file.php?file=/data/280507/1180375096/Slit+Tube.SLDPRT



[LesPaul82]

I can't download anything from the link.

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[CorBlimeyLimey]

Yeah Ijust noticed that the link is going to the upload site instead of the download.

Try this one;

http://www.savefile.com/files/760295

The internet is acting up today ... at least it is from my end (Ontario). How is it for you? Where are you?



[LesPaul82]

That's it perfect. My internet is working alright today. I'm in Vancouver. Thanks for all your help.

Sean
Carmanah Design and Manufacturing
Vancouver, BC, Canada

http://www.carmanahdesign.com



[LesPaul82]

Mission accomplished. Just in case you're curious this is what the part ended up looking like.

http://i25.photobucket.com/albums/c72/SNutley/rotordrum_flat.jpg

Thanks again for the help.
