Hello everyone,
I have a question about CW purlin bolted connections in Tekla. I can not create it as I wish.

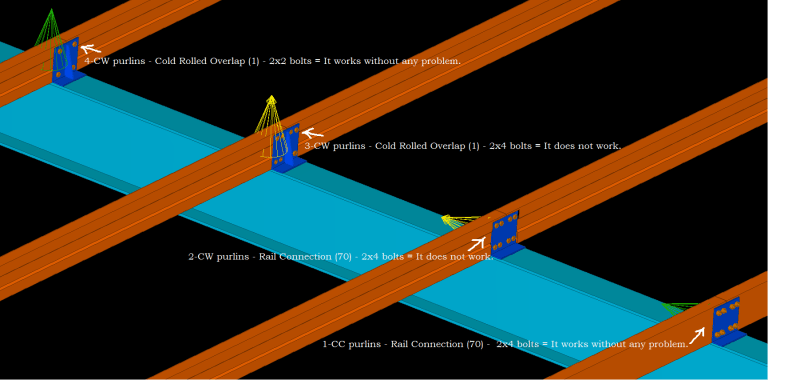

If I use Cold Rolled overlap (1) macro: It does not work properly with 2x4 bolts. It works only 2x2 bolts. If I use Rail Connection (70) macro, it does not work too. Rail connection (70) works with CC purlins but I prefer CW. Here, in the picture I tried to explain it in a better way:
Do you think there is a solution for this? I will be very glad if you share it.
Regards,
