Catia V5R18 - Remove redundant line when modifying geometrical tolerance in feature control frame 1

Thread starter jprice19
Start date Oct 28, 2019

Status: Not open for further replies.

Oct 28, 2019

jprice19

Automotive

Ref: Modifying Tolerances in Feature Control Frames

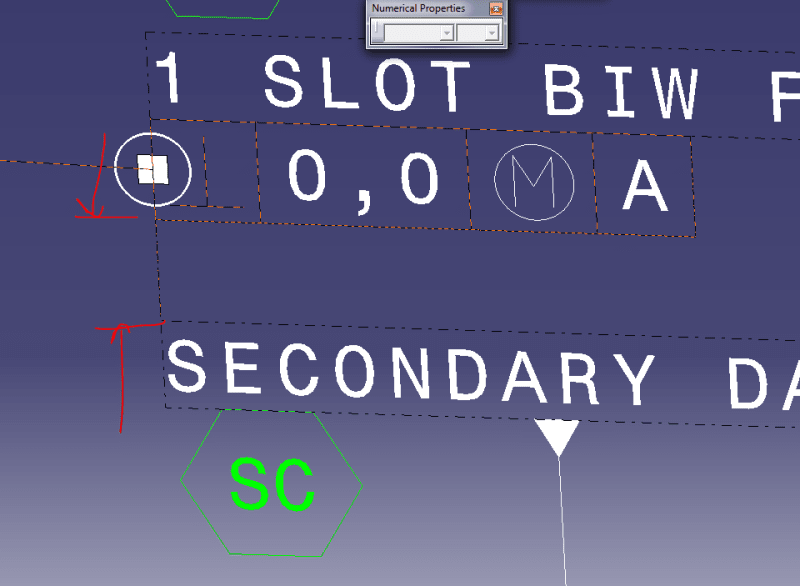

Can anyone help me with a command that removes the blank that appears when a second (or third) line is removed from a feature control frame?

Deleting the entire geometrical tolerance and re-creating it doesn't really appeal if there's an easier way.

Rgds,
James
