A typo on Fig. B-14 ?

[SeasonLee]

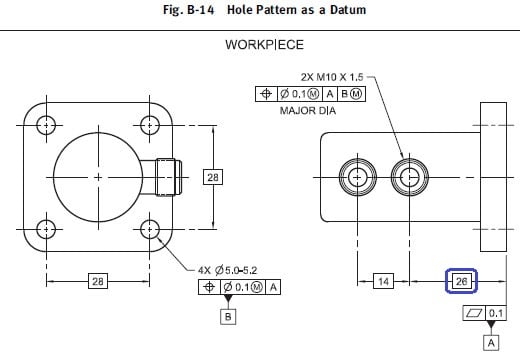

Please ref to the Fig. B-14 on Y14.43-2011
Is this a typo on the gage basic dimension 29 ?

Season



[ctopher]

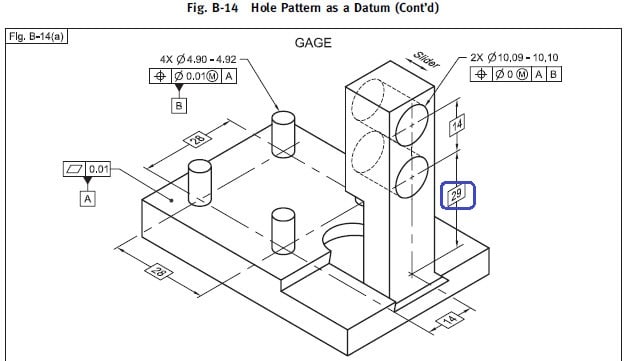

The iso view is not clear which surface the 29 dim goes to. It also does not indicated the thickness of the bottom flange. So, is it 26 + 3 for the flange? Or, a typo.

ctopher, CSWP
SolidWorks '17
ctophers home
SolidWorks Legion



[3DDave]

They need better students to do the figures.



[SeasonLee]

The 3mm flange will not be a good design, its too small for me, it could be a typo.

Season



[ctopher]

Curious, is this from a training manual?

ctopher, CSWP
SolidWorks '17
ctophers home
SolidWorks Legion



[SeasonLee]

And I noticed the figure is exactly the same as previous 2003 version.

Season



[chez311]

ctopher - these figures are from Y14.43 Dimensioning and Tolerancing Principles for Gages and Fixtures.
